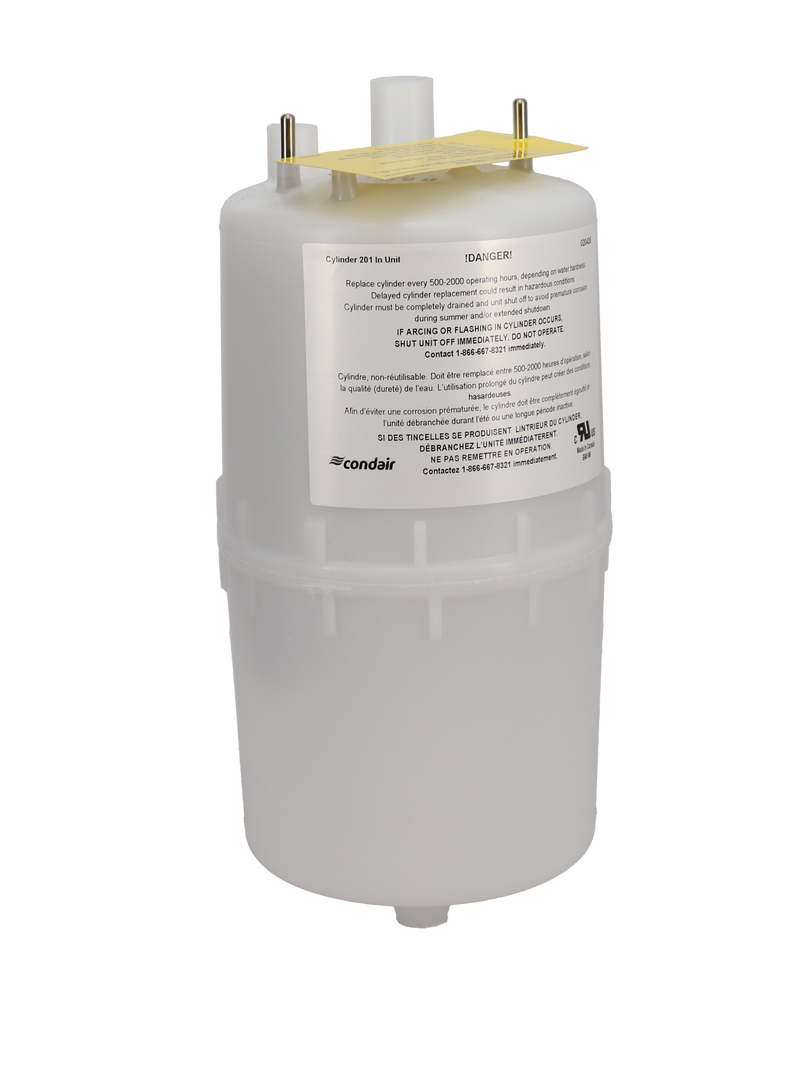

Stock photo — may not be the exact part. Verify by part number before ordering.1519002 — Condair 202 Electrode Steam Cylinder
In stock and ordered before 1pm ET, Mon–Fri? It ships the same day from our US warehouse.
Not sure it's the right part? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Need more than 10? Ask about factory lead time — we'll give you a real date, not a guess.
Min. order: 1 unit · Weight: 2.1 lb
Overview
Genuine Condair OEM 202 Electrode Steam Cylinder (P/N 1519002) for 5–10 lb/hr, 120–277V single-phase electrode steam humidifiers. Condair Inc. was known as Nortec Humidity until 2019 — same company, same factory part numbers — so this is the correct replacement for both Condair- and Nortec-branded units. (Condair/Nortec is not affiliated with Nortek Global HVAC.)
Humidifier models this cylinder fits
This cylinder is the factory-default cylinder for 78 Nortec and Condair humidifier models, including: EL 10, EL 5, ESB-100, ESB-50, MES-5-10, MES2-010, MESU 05, MESU 10, MP-100, MP-50, NH-EL 005, NH-EL 010, NH-EL Space 005, NH-EL Space 010, NHB/NHP/NHMC-005, NHB/NHP/NHMC-010, NHMC 005, NHMC 010, NHPC 005, NHPC 010, NHTC 005, NHTC 010, NHU, RESDELUX, RH2 Duct, RH2 Space. Match the model or P/N on your humidifier's data plate against the table.
Show all 78 compatible models
| Humidifier model | Humidifier P/N | Capacity (lb/hr) | Voltage | Phase | Notes |
|---|---|---|---|---|---|
| NH-EL-1/005/110-120/1 | 2573379 | 5 | 110-120 | 1 | |
| NH-EL-1/010/208/1 | 2573380 | 10 | 208 | 1 | |
| NH-EL-1/010/220-240/1 | 2573382 | 10 | 220-240 | 1 | |
| NH-EL-1/010/277/1 | 2573383 | 10 | 277 | 1 | |
| NHU | — | — | 120-240 | 1 | 2.0/4.0 kW |
| RH2-Space, 8lbs/hr, 120/208/240V 1P | 2548004 | 8 | 120-240 | 1 | |
| RH2-Duct, 10lbs/hr, 120/208/240V 1P | 2548005 | 10 | 120-240 | 1 | |
| RH2+ Space, 8lbs/hr, 120/208/240V 1P | 2560952 | 8 | 120-240 | 1 | |
| RH2+ Duct, 10lbs/hr, 120/208/240V 1P | 2560953 | 10 | 120-240 | 1 | |
| RESDELUX (10 AMP) 120/240 H.W. | 1580120 | — | 120-240 | 1 | 1.38/2.76 kW |
| RESDELUX (13A) 120/240 V H.W. | 1580130 | — | 120-240 | 1 | |
| MP-50 | — | — | 110-120 | — | |
| MP-100 | — | — | 208-277 | — | |
| ESB-50 | — | — | 110-277 | — | |
| ESB-100 | — | — | 208-277 | — | |
| NH-EL Space 005/110-120/1 | 2573429 | 5 | 115 | 1 | Space unit |
| NH-EL Space 010/208/1 | 2573430 | 10 | 208 | 1 | Space unit |
| NH-EL Space 010/220-240/1 | 2573431 | 10 | 220-240 | 1 | Space unit |
| NH-EL Space 010/277/1 | 2573432 | 10 | 277 | 1 | Space unit |
| MESU 05 230/1 CPCE ATT LVC | 1579002 | 5 | 230 | 1 | |
| MESU 05 208-277/1 CPCE ATT LVC | 1579001 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 CPCE ATT LVC | 1639115 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 CPCE ATT PVC | 1639119 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 CPCE REM LVC | 1639117 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 CPOE REM LVC | 1639116 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 OPCE ATT LVC | 1639112 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 OPCE ATT PVC | 1639118 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 OPCE REM LVC | 1639114 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 OPOE ATT LVC | 1639111 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 OPOE REM LVC | 1579004 | 5 | 208-277 | 1 | |
| MESU 05 208-277/1 OPOE REM LVC | 1639113 | 5 | 208-277 | 1 | |
| MESU 10 208-277/1 CPCE ATT LVC | 1639215 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 CPCE ATT PVC | 1639219 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 CPCE REM LVC | 1639217 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 CPOE REM LVC | 1639216 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 OPCE ATT LVC | 1639212 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 OPCE ATT PVC | 1639218 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 OPCE REM LVC | 1639214 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 OPOE ATT LVC | 1639211 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 OPOE REM LVC | 1579006 | 10 | 208-277 | 1 | |
| MESU 10 208-277/1 OPOE REM LVC | 1639213 | 10 | 208-277 | 1 | |
| MES-5-10 | — | — | 208-277 | — | |
| MES2-010/208-277/1 ATT CE | 2550278 | 10 | 208-277 | 1 | |
| MES2-010/208-277/1 ATT CE PVW | 2550281 | 10 | 208-277 | 1 | |
| MES2-010/208-277/1 ATT OE | 2550277 | 10 | 208-277 | 1 | |
| MES2-010/208-277/1 REM CE | 2550280 | 10 | 208-277 | 1 | |
| MES2-010/208-277/1 REM OE | 2550279 | 10 | 208-277 | 1 | |
| NHB/NHP/NHMC-005 | — | 5 | 110-120 | 1 | |
| NHB/NHP/NHMC-005 | — | 5 | 208 | 1 | |
| NHB/NHP/NHMC-005 | — | 5 | 220-240 | 1 | |
| NHB/NHP/NHMC-005 | — | 5 | 277 | 1 | |
| NHB/NHP/NHMC-010 | — | 10 | 208 | 1 | |
| NHB/NHP/NHMC-010 | — | 10 | 220-240 | 1 | |
| NHB/NHP/NHMC-010 | — | 10 | 277 | 1 | |
| NHMC 005/110-120/1PH UNIT | 1479301 | 5 | 110-120 | 1 | |
| NHMC 005/110-120/1PH UNIT BOBP | 1479601 | 5 | 110-120 | 1 | Space unit |
| NHMC 010/208/1PH UNIT | 1479309 | 10 | 208 | 1 | |
| NHMC 010/208/1PH UNIT BOBP | 1479609 | 10 | 208 | 1 | Space unit |
| NHMC 010/220-240/1PH UNIT | 1479310 | 10 | 220-240 | 1 | |
| NHMC 010/220-240/1PH UNIT BOBP | 1479610 | 10 | 220-240 | 1 | Space unit |
| NHMC 010/277/1PH UNIT | 1479311 | 10 | 277 | 1 | |
| NHMC 010/277/1PH UNIT BOBP | 1479611 | 10 | 277 | 1 | Space unit |
| NHTC+ 010 Outdoor 277/1 | 2557756 | 10 | 277 | 1 | Outdoor |
| NHTC+ 010 Outdoor 208/1 | 2557754 | 10 | 208 | 1 | Outdoor |
| NHTC 010 Outdoor 208/1 | 2523864 | 10 | 208 | 1 | Outdoor |
| NHTC+ 005/110-120/1 | 2557590 | 5 | 110-120 | 1 | |
| NHTC+ 010/208/ 1 | 2557591 | 10 | 208 | 1 | |
| NHTC+ 010/220-240/1 | 2557592 | 10 | 220-240 | 1 | |
| NHTC+ 010/277/1 | 2557593 | 10 | 277 | 1 | |
| NHPC+ 005/110-120/1 | 2557698 | 5 | 110-120 | 1 | |
| NHPC+ 010/208/1 | 2557699 | 10 | 208 | 1 | |
| NHPC+ 010/220-240/1 | 2557700 | 10 | 220-240 | 1 | |
| NHPC+ 010/277/1 | 2557701 | 10 | 277 | 1 | |
| Nortec EL 5/110-120/1 | — | 5 | 110-120 | 1 | |
| Nortec EL 10/208/1 | — | 10 | 208 | 1 | |
| Nortec EL 10/220-240/1 | — | 10 | 220-240 | 1 | |
| Nortec EL 10/277/1 | — | 10 | 277 | 1 | |
| MESU 10 NO ELECTRICAL C/W CYL202 | 1501569 | 10 | — | — |
Some units were shipped with an alternative cylinder for local water conditions — if the cylinder in your unit has a different number, match that number. Not sure which cylinder you need? See our Condair / Nortec cylinder cross-reference guide or browse all Condair & Nortec humidifier parts.
Fits These Units and Series
Listed by Condair for the units and series below, based on the part's own description — not a complete fit list. Confirm the part number against your unit's parts list, or send us the model and serial and we'll confirm before you buy.
- Condair EL
- Condair / Nortec MES
- Nortec NH-EL
- Nortec NHMC
- Nortec NHPC
- Nortec NHTC
- Nortec RH2
- Condair RH Classic
