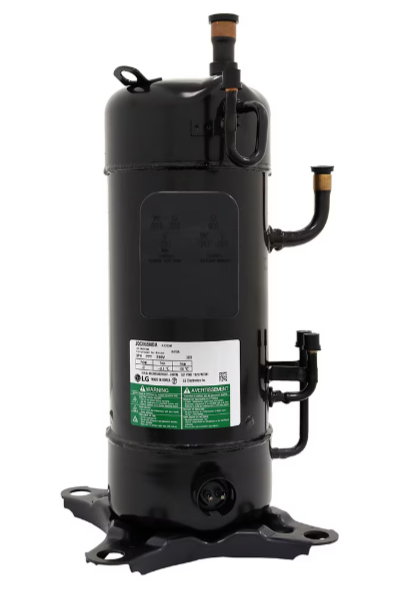

LG TBZ37416201 JQC068MBA inverter scroll compressor, Multi V 5 208/230VStock photo — may not be the exact part. Verify by part number before ordering.
LG Genuine OEM

LG TBZ37416201 Compressor, JQC068MBA Inverter Scroll – Multi V 5 208/230V

Part number TBZ37416201
Interchangeable part numbers
TBZ37957301 discontinuedTBZ39229101TBZ39260201
LG lists these numbers as direct interchanges with TBZ37416201. If your old part carries any of them, TBZ37416201 is the current part.
Genuine LG OEM Free standard shipping (US) Ships via UPS/FedEx Ground, or truck freight for oversized items No account needed
$2,748.59 per unit
30-day returns
In Stock - Ships Same or Next Business Day
Quote

Not sure it's the right part? Check it against your unit or send us the model and serial — help@totalhvacparts.com or 302-219-4994.

Overview

LG TBZ37416201 is the genuine LG JQC068MBA inverter scroll compressor for 208/230V Multi V 5 outdoor units (ARUM…BTE5), Multi V Water 5 (ARWM…BAS5) and the KCHH/ZCHH models listed below. It is the 208/230V version; the 460V version of the same compressor is TBZ37117301 (JQC068MAA). Check the voltage on your unit's data plate before ordering.

LG lists TBZ37957301, TBZ39229101 and TBZ39260201 as interchangeable with TBZ37416201 — if your failed compressor carries any of those numbers, this is the current part. An inverter compressor failure is often paired with a damaged inverter board; the matching 208/230V board is EBR82376303.

Fits These LG Units

LG lists TBZ37416201 for the models below. Enter your model and serial in the fit checker to confirm against LG's service notices.

ACAH models

ACHH models

AKW1 models

  • AKW180BC00

Multi V 5 outdoor units (ARUM)

Multi V Water 5 (ARWM)

KCHH models

ZCHH models

  • ZCHH017VDGC
  • ZCHH020VDGC
  • ZCHH033VDGC
  • ZCHH040VDGC
  • ZCHH050VDGC
  • ZCHH060VDGC

ZRUM models

ZRWM models

Specifications

Technical Data — LG OEM TBZ37416201
Part number
TBZ37416201
Compressor model
JQC068MBA
Compressor type
Inverter scroll
Voltage
208/230V
Refrigerant
R-410A
System family
LG Multi V 5 / Multi V Water 5

Cross-Reference & Companion Parts

PartDescriptionStock
LG TBZ37117301 Compressor, JQC068MAA Inverter Scroll – Multi V 5 460V
 TBZ37117301LG · Voltage variant 460V version of this compressor (JQC068MAA) for ARUM…DTE5 / ARWM…DAS5 ✓ In stock — ships same or next business day View

After You Order

01
Confirmed

Order number and confirmation by email the moment you check out.

02
Packed

In stock - ships the same or next business day, Monday–Friday. Tracking follows by email the moment it leaves.

03
Shipped

Tracking number lands in your inbox the moment it leaves the building.

04
Delivered

Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.

Ask the Parts Desk

Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.

Part number TBZ37416201 and a link to this page are attached automatically — no need to copy anything.

Common Questions

What LG models does TBZ37416201 fit?

LG lists TBZ37416201 for: ACAH020VDTB, ACAH033VDTB, ACAH050VDTB, ACHH017VBAB, ACHH033VBAB, ACHH050VBAB, AKW180BC00, ARUM096BTE5, ARUM121BTE5, ARUM192BTE5, ARUM216BTE5, ARUM241BTE5, ARWM072BAS5, ARWM096BAS5, ARWM121BAS5, ARWM144BAS5, KCHH017VDGC, KCHH020VDGC, KCHH033VDGC, KCHH040VDGC, KCHH050VDGC, KCHH060VDGC, ZCHH017VDGC, ZCHH020VDGC, ZCHH033VDGC, ZCHH040VDGC, ZCHH050VDGC, ZCHH060VDGC, ZRUM072BTE6, ZRUM096BTE6, ZRUM144BTE6, ZRUM216BTE6, ZRWM072BAS5, ZRWM096BAS5. Use the fit checker on this page with your model and serial to confirm against LG's service notices.

What part numbers are interchangeable with TBZ37416201?

LG lists TBZ37957301, TBZ39229101, TBZ39260201 as interchangeable with TBZ37416201. If the part in your unit carries any of those numbers, TBZ37416201 is the current part.

Is TBZ37416201 208/230V or 460V?

TBZ37416201 is the 208/230V version. The 460V version of this compressor (JQC068MAA) for ARUM…DTE5 / ARWM…DAS5 is TBZ37117301; check the voltage on your unit's data plate before ordering.

Is the stock number on this page real?

Yes. The stock line on this page comes from LG's parts stock feed plus our own warehouse count, not an estimate. "In Stock - Ships Same or Next Business Day" means TBZ37416201 is on hand and leaves within one business day of your order, Monday–Friday.

Is this a genuine LG part, or aftermarket?

Genuine LG OEM equipment sourced through LG's authorized parts program — not an aftermarket substitute.

How do I confirm this fits my unit?

Match part number TBZ37416201 to your unit's parts diagram. If unsure, send us your model and serial number and we'll verify before you order.

What's the warranty on this part?

Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.

How fast does this ship?

TBZ37416201 ships the same or next business day, Monday–Friday, with tracking by email. Standard ground delivers to most of the continental US in 2–5 business days.

Does everything ship UPS or FedEx Ground?

Most orders ship UPS or FedEx Ground. A small number of large or heavy parts across the catalog ship by truck freight instead, and we reach out to arrange a delivery window before those orders leave the warehouse. Oversized items that ship by truck freight are also covered by free standard shipping on orders of $50 or more.

Confirm exact lead time

Part TBZ37416201 — we'll check our shelf and the factory and reply with a real date.

A real person replies — usually within 4 hours, 8am–6pm ET, Mon–Fri.

$2,748.59 In Stock - Ships Same or Next Business Day
Check fit for your unit

Enter the model number from your unit's data tag. Add the serial number too and we'll check it against LG's service notices for this part.
