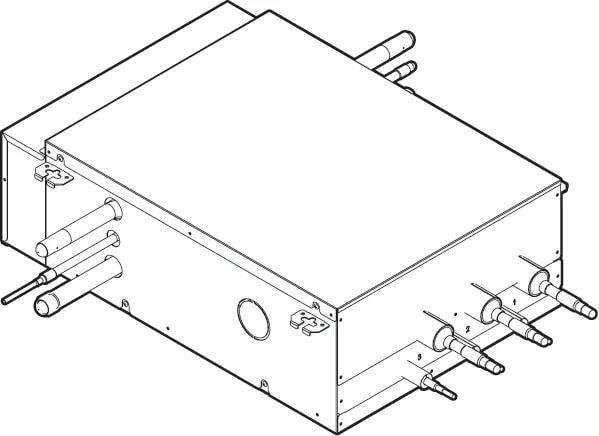

Photo may vary slightly — verify by model number before ordering.LG PRHR033C Multi V 3-Port Heat Recovery Unit (Branch Distribution Box), R32
In stock and ordered before 1pm ET, Mon–Fri? It ships the same day from our US warehouse.
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Need more than 1? Ask about factory lead time — we'll give you a real date, not a guess.
Min. order: 1 unit · Weight: 104.7 lb · Parcel
Overview
LG PRHR033C is a 3-port heat recovery unit (branch distribution unit) for LG Multi V heat-recovery VRF systems, running on R32. It routes refrigerant so that some zones heat while others cool on the same system, with one port per connected indoor unit. It replaces PRHR033A.
80.2 lb net, 208-230/60/1 power. Multiple HR units can be cascaded on one system where zone counts exceed a single unit's ports.
Application notes
- Connects up to 3 indoor units; each port serves one indoor unit.
- Required only on heat-recovery (simultaneous heat/cool) systems — heat-pump systems connect indoor units directly.
- Mount in an accessible ceiling space with service clearance; the unit contains electronic expansion valves and requires power and communication wiring.
- Match the refrigerant family: R32 systems use R32 branch units.
Compatible Units
LG approves PRHR033C only in the combinations below (per the LG engineering manual and submittal). Mixing it with any other outdoor or indoor unit is not an AHRI-rated match. Ask the parts desk if your existing equipment isn't listed.
- LG Multi V R32 heat-recovery systems
Specifications
Documentation
After You Order
Order number and confirmation by email the moment you check out.
Pulled from our shelf — the same live count you saw on this page. In-stock orders placed before 1pm ET, Mon–Fri, leave the same business day.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What does the LG PRHR033C pair with?
LG rates PRHR033C only with LG Multi V R32 heat-recovery systems. Other combinations are not AHRI-matched and are not covered by the LG warranty.
What does the PRHR033C replace?
PRHR033C is LG's current R32 model in this position and replaces the discontinued PRHR033A. R32 and R-410A equipment cannot be mixed — replace the indoor and outdoor unit together.
What power does the PRHR033C need?
208-230V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for PRHR033C?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
Is the stock number on this page real?
Yes — it's the live count from our own shelf, not an availability estimate. If it says 1, that's how many are physically here. When it hits zero, this page says so.
Is this a genuine LG unit, or aftermarket?
Genuine LG OEM equipment — not an aftermarket substitute.
I see this listed under a different name on other sites. Is it the same part?
Yes — manufacturers and distributors sometimes use different brand names or legacy labels for the same part number. Part number PRHR033C is identical across all name variations.
What's the warranty on this part?
Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.
