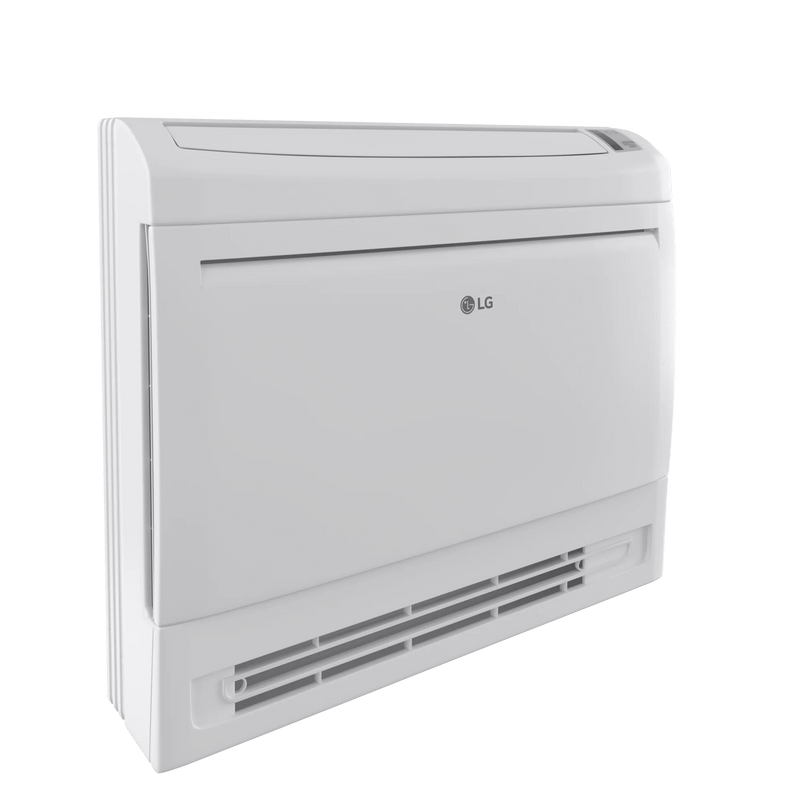

Photo may vary slightly — verify by model number before ordering.LG KSUQB121A 12,000 BTU Low Wall Console Single-Zone Heat Pump System, R32, 19.7 SEER2 (KNUQB121A + KUSXB121A)
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Min. order: 1 unit · Weight: 119.1 lb · Truck Freight
Overview
LG KSUQB121A is the complete 12,000 BTU (1 Ton) R32 single-zone low wall console mini split heat pump system from LG's Low Wall Console line: the KNUQB121A indoor unit and the KUSXB121A inverter outdoor unit, sold together as the matched, AHRI-rated pair. It is rated 19.7 SEER2, 13 EER2, 10.5 HSPF2, runs on 208-230 / 60 / 1 power (13.4 A MCA / 15 A MOP), and is the direct R32 replacement for the R-410A LQ120HV (LQN120HV4 + LUU120HV).
Capacity modulates across 4,500 / 10,200 / 13,460 Btu/h in cooling and 5,970 / 13,000 / 16,600 Btu/h in heating (min / rated / max), so the system idles at part load instead of cycling. Heating continues down to -4°F outdoor. The indoor unit runs as low as 27 dB(A); the outdoor unit is 49 dB(A) in cooling.
Features
- • Auto restart Hot start
- Control lock Inverter (variable speed
- Group control fan)
- Timer (on/off)
- • Sleep Mode
- Optional Wi-Fi Control
- R32 leak detection sensor
What's in the bundle
- 1 × LG KNUQB121A 12,000 BTU low wall console indoor unit with Wireless Remote Controller PQWRHQ0FDB
- 1 × LG KUSXB121A R32 inverter heat pump outdoor unit
What you still need
- 1/4 × 3/8 line set, 65.6 ft
- Interconnect cable, disconnect and breaker sized to the MCA/MOP in the specifications; pad or wall bracket; condensate drain
Typical coverage is roughly 450–550 sq ft depending on climate, insulation and layout. AHRI reference 214825951 (Energy Star, Energy Star Cold Climate). Installation and warranty registration should be completed by a licensed contractor who has completed LG training; the LG limited warranty document is linked under Documentation.
What's Included
This system ships as the LG-matched pair below. Each component is also sold separately — see Companion Units further down.
- Includes KNUQB121A indoor unit
- Includes KUSXB121A outdoor unit
Specifications
Documentation
Companion Units & System Bundle
After You Order
Order number and confirmation by email the moment you check out.
In-stock parts are pulled from our shelf and ship the same business day when ordered before 1pm ET, Mon–Fri. Lead-time parts ship by the date shown on their product page — if that changes, we tell you before it ships.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What is included with the KSUQB121A system?
KSUQB121A ships as Includes KNUQB121A indoor unit and Includes KUSXB121A outdoor unit. Line set, interconnect wiring, disconnect, pad or bracket and condensate drain are field supplied.
What does the KSUQB121A replace?
KSUQB121A is LG's current R32 model in this position and replaces the discontinued LQ120HV, LQN120HV4 + LUU120HV. R32 and R-410A equipment cannot be mixed — replace the indoor and outdoor unit together.
What power does the KSUQB121A need?
208-230V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for KSUQB121A?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
