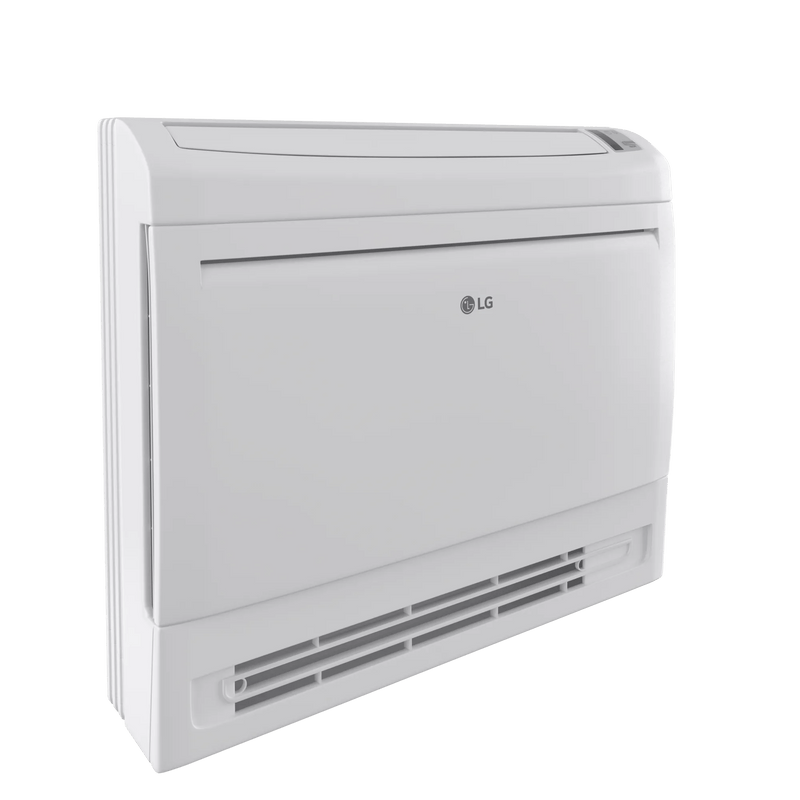

Photo may vary slightly — verify by model number before ordering.LG KSUQB091A 9,000 BTU Low Wall Console Single-Zone Heat Pump System, R32, 20 SEER2 (KNUQB091A + KUSXB091A)
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Min. order: 1 unit · Weight: 119.1 lb · Truck Freight
Overview
LG KSUQB091A is the complete 9,000 BTU (3/4 Ton) R32 single-zone low wall console mini split heat pump system from LG's Low Wall Console line: the KNUQB091A indoor unit and the KUSXB091A inverter outdoor unit, sold together as the matched, AHRI-rated pair. It is rated 20 SEER2, 13.2 EER2, 10.6 HSPF2, runs on 208-230 / 60 / 1 power (13.4 A MCA / 15 A MOP), and is the direct R32 replacement for the R-410A LQ090HV (LQN090HV4 + LUU090HV).
Capacity modulates across 4,270 / 9,000 / 9,900 Btu/h in cooling and 4,600 / 10,100 / 14,500 Btu/h in heating (min / rated / max), so the system idles at part load instead of cycling. Heating continues down to -4°F outdoor. The indoor unit runs as low as 27 dB(A); the outdoor unit is 47 dB(A) in cooling.
Features
- • Auto restart Hot start
- Control lock Inverter (variable speed
- Group control fan)
- Timer (on/off)
- • Sleep Mode
- Optional Wi-Fi Control
- R32 leak detection sensor
What's in the bundle
- 1 × LG KNUQB091A 9,000 BTU low wall console indoor unit with Wireless Remote Controller PQWRHQ0FDB
- 1 × LG KUSXB091A R32 inverter heat pump outdoor unit
What you still need
- 1/4 × 3/8 line set, 65.6 ft
- Interconnect cable, disconnect and breaker sized to the MCA/MOP in the specifications; pad or wall bracket; condensate drain
Typical coverage is roughly 350–450 sq ft depending on climate, insulation and layout. AHRI reference 214826532 (Energy Star, Energy Star Cold Climate). Installation and warranty registration should be completed by a licensed contractor who has completed LG training; the LG limited warranty document is linked under Documentation.
What's Included
This system ships as the LG-matched pair below. Each component is also sold separately — see Companion Units further down.
- Includes KNUQB091A indoor unit
- Includes KUSXB091A outdoor unit
Specifications
Documentation
Companion Units & System Bundle
After You Order
Order number and confirmation by email the moment you check out.
In-stock parts are pulled from our shelf and ship the same business day when ordered before 1pm ET, Mon–Fri. Lead-time parts ship by the date shown on their product page — if that changes, we tell you before it ships.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What is included with the KSUQB091A system?
KSUQB091A ships as Includes KNUQB091A indoor unit and Includes KUSXB091A outdoor unit. Line set, interconnect wiring, disconnect, pad or bracket and condensate drain are field supplied.
What does the KSUQB091A replace?
KSUQB091A is LG's current R32 model in this position and replaces the discontinued LQ090HV, LQN090HV4 + LUU090HV. R32 and R-410A equipment cannot be mixed — replace the indoor and outdoor unit together.
What power does the KSUQB091A need?
208-230V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for KSUQB091A?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
Is the stock number on this page real?
Yes — it's the live count from our own shelf, not an availability estimate. If it says 1, that's how many are physically here. When it hits zero, this page says so.
Is this a genuine LG unit, or aftermarket?
Genuine LG OEM equipment — not an aftermarket substitute.
I see this listed under a different name on other sites. Is it the same part?
Yes — manufacturers and distributors sometimes use different brand names or legacy labels for the same part number. Part number KSUQB091A is identical across all name variations.
What's the warranty on this part?
Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.
How fast does this ship?
In-stock items ship the same business day on orders placed before 1pm ET, Monday–Friday. Standard ground delivers to most of the continental US in 2–5 business days. This part ships by LTL freight, so transit runs on the freight schedule — we'll contact you to arrange delivery.
