Photo may vary slightly — verify by model number before ordering.LG KSUAB181A 18,000 BTU High Efficiency Single-Zone Ductless Mini Split Heat Pump System, R32, 23.0 SEER2 (KNUAB181A + KUSAB181A)
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Min. order: 1 unit · Weight: 177.3 lb · Truck Freight
Overview
LG KSUAB181A is the complete 18,000 BTU (1.5 Ton) R32 single-zone wall-mount ductless mini split heat pump system from LG's High Efficiency line: the KNUAB181A indoor unit and the KUSAB181A inverter outdoor unit, sold together as the matched, AHRI-rated pair. It is rated 23.0 SEER2, 13.00 EER2, 10.0 HSPF2, runs on 208-230 / 60 / 1 power (19 A MCA / 30 A MOP), and is the direct R32 replacement for the R-410A LS181HSV5 (LSN181HSV5 + LSU181HSV5).
Capacity modulates across 3,070 / 18,000 / 24,210 Btu/h in cooling and 3,070 / 21,600 / 30,020 Btu/h in heating (min / rated / max), so the system idles at part load instead of cycling. Heating continues down to -4°F outdoor, with 18,600 Btu/h available at 17°F and 15,120 Btu/h at 5°F. The indoor unit runs as low as 31 dB(A); the outdoor unit is 55 dB(A) in cooling.
What's in the bundle

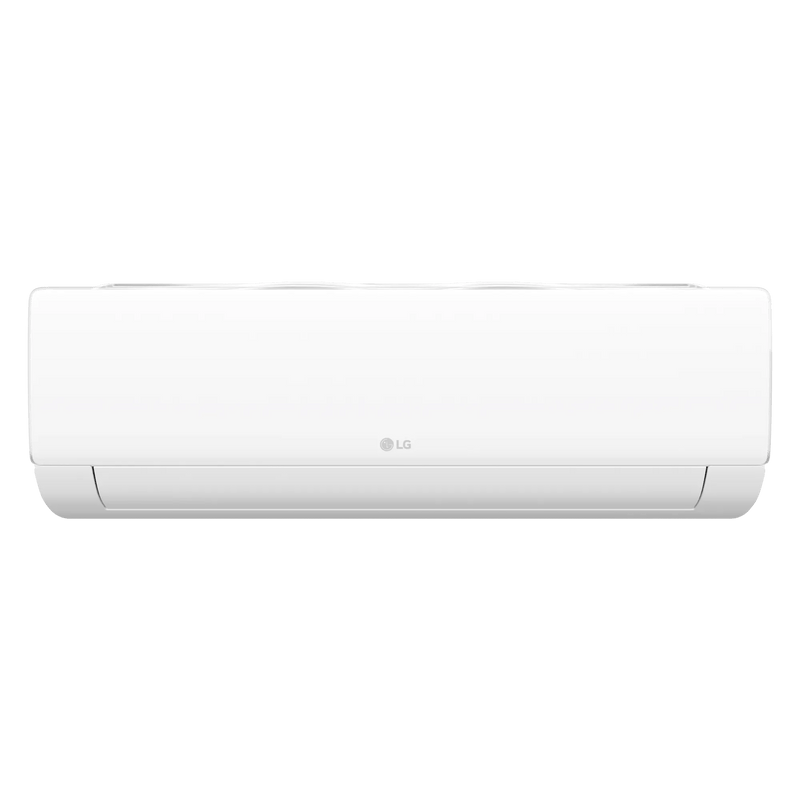

- 1 × LG KNUAB181A 18,000 BTU wall-mount indoor unit with Wireless Remote Controller AKB76044208
- 1 × LG KUSAB181A R32 inverter heat pump outdoor unit
What you still need
- 3/8 Flare × 5/8 Flare line set, 9.8 / 114.8 ft
- Interconnect cable, disconnect and breaker sized to the MCA/MOP in the specifications; pad or wall bracket; condensate drain
Typical coverage is roughly 700–900 sq ft depending on climate, insulation and layout. AHRI reference 215413009. Installation and warranty registration should be completed by a licensed contractor who has completed LG training; the LG limited warranty document is linked under Documentation.
What's Included
This system ships as the LG-matched pair below. Each component is also sold separately — see Companion Units further down.
- Includes KNUAB181A indoor unit
- Includes KUSAB181A outdoor unit
Specifications
Documentation
Companion Units & System Bundle
After You Order
Order number and confirmation by email the moment you check out.
In-stock parts are pulled from our shelf and ship the same business day when ordered before 1pm ET, Mon–Fri. Lead-time parts ship by the date shown on their product page — if that changes, we tell you before it ships.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What is included with the KSUAB181A system?
KSUAB181A ships as Includes KNUAB181A indoor unit and Includes KUSAB181A outdoor unit. Line set, interconnect wiring, disconnect, pad or bracket and condensate drain are field supplied.
What does the KSUAB181A replace?
KSUAB181A is LG's current R32 model in this position and replaces the discontinued LS181HSV5, LSN181HSV5 + LSU181HSV5. R32 and R-410A equipment cannot be mixed — replace the indoor and outdoor unit together.
What power does the KSUAB181A need?
208-230V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for KSUAB181A?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
