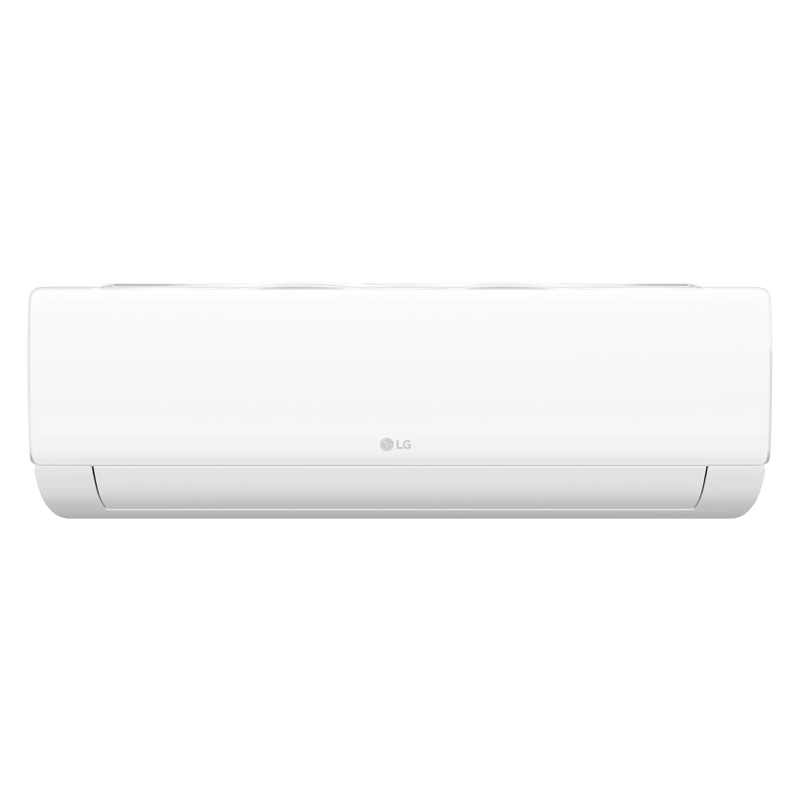

Photo may vary slightly — verify by model number before ordering.LG KSSAC091B 9,000 BTU Mega 115V Single-Zone Ductless Mini Split Heat Pump System, R32, 21 SEER2 (KNSAC091B + KUSAC091B)
In stock and ordered before 1pm ET, Mon–Fri? It ships the same day from our US warehouse.
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Need more than 2? Ask about factory lead time — we'll give you a real date, not a guess.
Min. order: 1 unit · Weight: 82.0 lb · Truck Freight
Overview
LG KSSAC091B is the complete 9,000 BTU (3/4 Ton) R32 single-zone wall-mount ductless mini split heat pump system from LG's Mega 115V line: the KNSAC091B indoor unit and the KUSAC091B inverter outdoor unit, sold together as the matched, AHRI-rated pair. It is rated 21 SEER2, 12.5 EER2, 9.2 HSPF2, runs on 115 /60/1 power (15 A MCA / 20 A MOP), and is the direct R32 replacement for the R-410A LS090HXV2 (LSN090HXV2 + LSU090HXV2).
Capacity modulates across 3,070 / 9,000 / 11,980 Btu/h in cooling and 3,070 / 10,900 / 12,930 Btu/h in heating (min / rated / max), so the system idles at part load instead of cycling. Heating continues down to 5°F outdoor, with 9,810 Btu/h available at 17°F and 7,700 Btu/h at 5°F. The indoor unit runs as low as 21 dB(A); the outdoor unit is 50 dB(A) in cooling.
Features
- 24-Hour on/off timer
- Two-way (up / down) auto swing
- Auto changeover
- Auto restart
- Jet cool/Jet heat
- Smart Care
- Smart Diagnosis
- Built-in Wi-Fi via ThinQ™ app
- Energy saving
- Inverter (variable speed compressor)
- Self-cleaning indoor coil
- Sleep mode
- Ultra-quiet operation
What's in the bundle
- 1 × LG KNSAC091B 9,000 BTU wall-mount indoor unit with Wireless Remote Controller AKB76044207
- 1 × LG KUSAC091B R32 inverter heat pump outdoor unit
What you still need
- 1/4 × 3/8 line set, 9.8 / 49.2 ft
- Interconnect cable, disconnect and breaker sized to the MCA/MOP in the specifications; pad or wall bracket; condensate drain
Typical coverage is roughly 350–450 sq ft depending on climate, insulation and layout. AHRI reference 214931170 (Energy Star, Energy Star Cold Climate). Installation and warranty registration should be completed by a licensed contractor who has completed LG training; the LG limited warranty document is linked under Documentation.
What's Included
This system ships as the LG-matched pair below. Each component is also sold separately — see Companion Units further down.
- Includes KNSAC091B indoor unit
- Includes KUSAC091B outdoor unit
Specifications
Values in italic are not yet confirmed from OEM documentation. Ask us to verify before ordering.
Documentation
Companion Units & System Bundle
After You Order
Order number and confirmation by email the moment you check out.
Pulled from our shelf — the same live count you saw on this page. In-stock orders placed before 1pm ET, Mon–Fri, leave the same business day.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What is included with the KSSAC091B system?
KSSAC091B ships as Includes KNSAC091B indoor unit and Includes KUSAC091B outdoor unit. Line set, interconnect wiring, disconnect, pad or bracket and condensate drain are field supplied.
What does the KSSAC091B replace?
KSSAC091B is LG's current R32 model in this position and replaces the discontinued LS090HXV2, LSN090HXV2 + LSU090HXV2. R32 and R-410A equipment cannot be mixed — replace the indoor and outdoor unit together.
What power does the KSSAC091B need?
115V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for KSSAC091B?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
Is the stock number on this page real?
Yes — it's the live count from our own shelf, not an availability estimate. If it says 2, that's how many are physically here. When it hits zero, this page says so.
Is this a genuine LG unit, or aftermarket?
Genuine LG OEM equipment — not an aftermarket substitute.
I see this listed under a different name on other sites. Is it the same part?
Yes — manufacturers and distributors sometimes use different brand names or legacy labels for the same part number. Part number KSSAC091B is identical across all name variations.
What's the warranty on this part?
Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.
How fast does this ship?
In-stock items ship the same business day on orders placed before 1pm ET, Monday–Friday. Standard ground delivers to most of the continental US in 2–5 business days. This part ships by LTL freight, so transit runs on the freight schedule — we'll contact you to arrange delivery.
