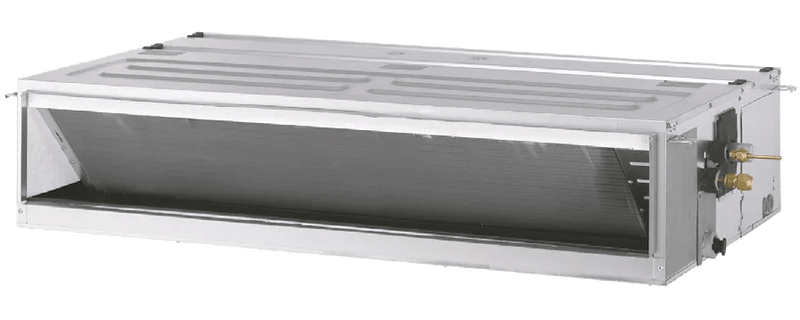

Photo may vary slightly — verify by model number before ordering.LG KNUJB301A 30,000 BTU Mid-Static Ducted Indoor Unit, R32 (Pairs with KUSXA301A)
In stock and ordered before 1pm ET, Mon–Fri? It ships the same day from our US warehouse.
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Need more than 4? Ask about factory lead time — we'll give you a real date, not a guess.
Min. order: 1 unit · Weight: 98.3 lb · Truck Freight
Overview
LG KNUJB301A is a 30,000 BTU R32 Mid-Static Ducted mid-static ducted indoor unit indoor unit that works two ways: as a single-zone system with the KUSXA301A outdoor unit (sold together as the KSUJA301A system), or as one head on an LG Multi F / Multi F MAX multi-zone outdoor unit.
Key figures from the LG submittal: net weight 85.3 lb, 989 CFM airflow on high, 5.6 pints/hour dehumidification, sound pressure as low as 32 dB(A). Refrigerant connections are ø3/8 liquid and ø5/8 vapor.
What this indoor unit needs
- Outdoor unit: LG KUSXA301A (sold separately or as the KSUJA301A system). No other LG outdoor unit is an approved single-zone match for this head.
- Multi-zone: any LG Multi F / Multi F MAX R32 outdoor unit (KUMXB / KUMXA) — capacity and head count per LG's combination data manual.
- Power: fed from the outdoor unit, 208-230/60/1; interconnect wiring is field supplied per the installation manual.
- Line set: ø3/8 × ø5/8.
AHRI reference 214796354 (Energy Star, Energy Star Cold Climate); installation and warranty registration by an LG-trained licensed contractor — current terms are in the LG limited warranty document under Documentation.
Compatible Units
LG approves KNUJB301A only in the combinations below (per the LG engineering manual and submittal). Mixing it with any other outdoor or indoor unit is not an AHRI-rated match. Ask the parts desk if your existing equipment isn't listed.
- KUSXA301A (outdoor unit)
- KSUJA301A (system)
- LG Multi F / Multi F MAX outdoor units (KUMXB / KUMXA)
Specifications
Values in italic are not yet confirmed from OEM documentation. Ask us to verify before ordering.
Documentation
Companion Units & System Bundle
| Model | Description | Stock | ||
|---|---|---|---|---|
 |
KUSXA301ALG · Required outdoor unit | KUSXA301A 30,000 BTU R32 outdoor unit — LG's rated match for this indoor unit | ✓ In stock | View |
 |
KSUJA301ALG · Complete system | KSUJA301A bundle: this indoor unit + KUSXA301A outdoor unit in one order | ✓ In stock | View |
 |
KUMXA181ALG · Compatible multi-zone outdoor unit | KUMXA181A 18,000 BTU Multi F LGRED° outdoor unit — see LG combination data manual for allowed IDU mixes | ✓ In stock | View |
 |
KUMXA241ALG · Compatible multi-zone outdoor unit | KUMXA241A 24,000 BTU Multi F LGRED° outdoor unit — see LG combination data manual for allowed IDU mixes | ✓ In stock | View |
 |
KUMXA301ALG · Compatible multi-zone outdoor unit | KUMXA301A 30,000 BTU Multi F LGRED° outdoor unit — see LG combination data manual for allowed IDU mixes | ✓ In stock | View |
 |
KUMXA361ALG · Compatible multi-zone outdoor unit | KUMXA361A 36,000 BTU Multi F MAX LGRED° outdoor unit — see LG combination data manual for allowed IDU mixes | ✓ In stock | View |
 |
KUMXA421ALG · Compatible multi-zone outdoor unit | KUMXA421A 42,000 BTU Multi F MAX LGRED° outdoor unit — see LG combination data manual for allowed IDU mixes | ✓ In stock | View |
 |
KUMXA481ALG · Compatible multi-zone outdoor unit | KUMXA481A 48,000 BTU Multi F MAX LGRED° outdoor unit — see LG combination data manual for allowed IDU mixes | ✓ In stock | View |
After You Order
Order number and confirmation by email the moment you check out.
Pulled from our shelf — the same live count you saw on this page. In-stock orders placed before 1pm ET, Mon–Fri, leave the same business day.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What does the LG KNUJB301A pair with?
LG rates KNUJB301A only with KUSXA301A (outdoor unit) or KSUJA301A (system) or LG Multi F / Multi F MAX outdoor units (KUMXB / KUMXA). Other combinations are not AHRI-matched and are not covered by the LG warranty.
What power does the KNUJB301A need?
208-230V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for KNUJB301A?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
Is the stock number on this page real?
Yes — it's the live count from our own shelf, not an availability estimate. If it says 4, that's how many are physically here. When it hits zero, this page says so.
Is this a genuine LG unit, or aftermarket?
Genuine LG OEM equipment — not an aftermarket substitute.
I see this listed under a different name on other sites. Is it the same part?
Yes — manufacturers and distributors sometimes use different brand names or legacy labels for the same part number. Part number KNUJB301A is identical across all name variations.
What's the warranty on this part?
Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.
How fast does this ship?
In-stock items ship the same business day on orders placed before 1pm ET, Monday–Friday. Standard ground delivers to most of the continental US in 2–5 business days. This part ships by LTL freight, so transit runs on the freight schedule — we'll contact you to arrange delivery.
Does everything ship UPS or FedEx Ground?
This part ships by truck freight rather than parcel — still free, included in the price shown, and we'll contact you to schedule delivery before it ships.Most orders ship UPS or FedEx Ground. A small number of large or heavy parts across the catalog ship by truck freight instead — that's still free, and we reach out to arrange a delivery window before those orders leave the warehouse.
