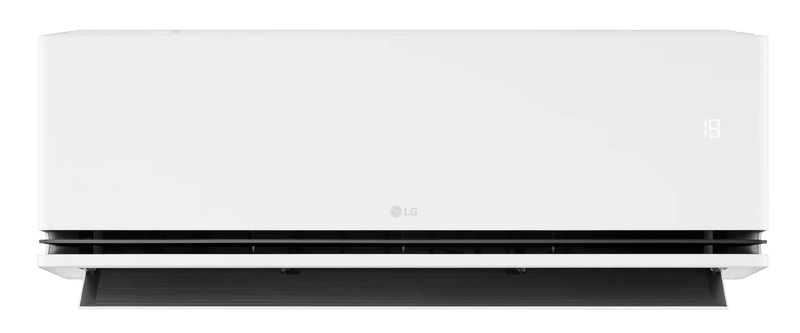

Photo may vary slightly — verify by model number before ordering.LG KNSAL121A 12,000 BTU ArtCool Deluxe Wall-Mount Mini Split Indoor Unit, R32 (Pairs with KUSAL121A)
In stock and ordered before 1pm ET, Mon–Fri? It ships the same day from our US warehouse.
Not sure it's the right unit? Send the model and serial — help@totalhvacparts.com or 302-219-4994.
Need more than 1? Ask about factory lead time — we'll give you a real date, not a guess.
Min. order: 1 unit · Weight: 28.7 lb · Parcel
Overview
LG KNSAL121A is the 12,000 BTU indoor unit for LG's R32 ArtCool Deluxe single-zone wall-mount system. It pairs exclusively with the KUSAL121A outdoor unit to form the KSSAL121A system, rated 25.5 SEER2 / 13.8 EER2 / 11.2 HSPF2. It is the R32 successor to the R-410A LAN120HYV3.
Key figures from the LG submittal: net weight 24.3 lb, 494 CFM airflow on high, 3.59 pints/hour dehumidification, sound pressure as low as 21 dB(A). Refrigerant connections are 1/4 Flare liquid and 3/8 Flare vapor.
Features
- Dual Vane / 4-Way Auto Swing
- Cooling Only / Heating Only
- Auto Restart / Auto Changeover
- Humidity Sensor / Control
- Jet Cool / Jet Heat
- Inverter (Variable Speed Compressor)
- Human Detection
- Smart Diagnosis
- Built-in Base Pan Heater
- Built-in Wi-Fi via Smart ThinQ app
- Low ambient cooling down to 14°F (0°F with Wind Baffle Kit)
What this indoor unit needs
- Outdoor unit: LG KUSAL121A (sold separately or as the KSSAL121A system). No other LG outdoor unit is an approved single-zone match for this head.
- Power: fed from the outdoor unit, 208-230/60/1; interconnect wiring is field supplied per the installation manual.
- Line set: 1/4 Flare × 3/8 Flare, 9.8 / 65.6 ft, up to 39.4 ft elevation difference.
- In the box: Wireless Remote Controller AKB76044813.
AHRI reference 216368960; installation and warranty registration by an LG-trained licensed contractor — current terms are in the LG limited warranty document under Documentation.
Compatible Units
LG approves KNSAL121A only in the combinations below (per the LG engineering manual and submittal). Mixing it with any other outdoor or indoor unit is not an AHRI-rated match. Ask the parts desk if your existing equipment isn't listed.
- KUSAL121A (outdoor unit)
- KSSAL121A (system)
Specifications
Values in italic are not yet confirmed from OEM documentation. Ask us to verify before ordering.
Documentation
Companion Units & System Bundle
After You Order
Order number and confirmation by email the moment you check out.
Pulled from our shelf — the same live count you saw on this page. In-stock orders placed before 1pm ET, Mon–Fri, leave the same business day.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What does the LG KNSAL121A pair with?
LG rates KNSAL121A only with KUSAL121A (outdoor unit) or KSSAL121A (system). Other combinations are not AHRI-matched and are not covered by the LG warranty.
What does the KNSAL121A replace?
KNSAL121A is LG's current R32 model in this position and replaces the discontinued LAN120HYV3. R32 and R-410A equipment cannot be mixed — replace the indoor and outdoor unit together.
What power does the KNSAL121A need?
208-230V, 1-phase. Minimum circuit ampacity and maximum overcurrent protection are listed in the Specifications table above and on the LG submittal under Documentation; size the breaker and wire to those values and local code.
Is the submittal sheet and installation manual available for KNSAL121A?
Yes — the LG submittal data sheet, engineering manual, installation manual and warranty document are all linked under Documentation on this page and can be downloaded without an account.
Is the stock number on this page real?
Yes — it's the live count from our own shelf, not an availability estimate. If it says 1, that's how many are physically here. When it hits zero, this page says so.
Is this a genuine LG unit, or aftermarket?
Genuine LG OEM equipment — not an aftermarket substitute.
I see this listed under a different name on other sites. Is it the same part?
Yes — manufacturers and distributors sometimes use different brand names or legacy labels for the same part number. Part number KNSAL121A is identical across all name variations.
What's the warranty on this part?
Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.
