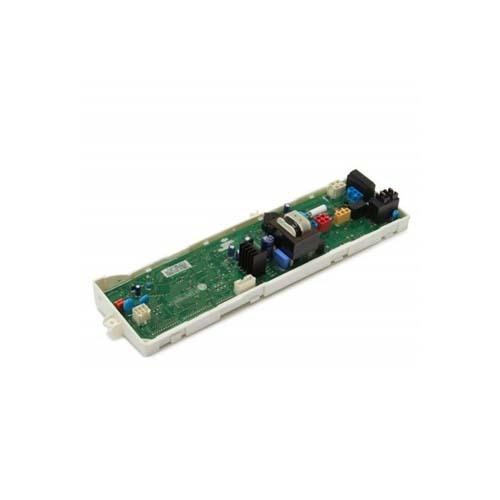

Stock photo — may not be the exact part. Verify by part number before ordering.LG EBR86480002 Sub PCB Assembly – mini split system
An interchangeable part may be available. See the options below and check them against your unit.
Not sure it's the right part? Check it against your unit or send us the model and serial — help@totalhvacparts.com or 302-219-4994.
Overview
LG EBR86480002 is the genuine LG sub PCB assembly for LG mini split systems. LG lists it for 16 models across mini split systems, including AMNW18GNJA2, AMNW24GNJA2 and AMNW36GNJA2. LG also lists EBR86480006 as a substitute for EBR86480002; it is not listed as a two-way interchange — check the number on your old part.
Check the model number on your unit's rating plate against the fit list on this page before ordering.
Fits These LG Units
LG lists EBR86480002 for the models below. Enter your model and serial in the fit checker to confirm against LG's service notices.
AMNW models
- AMNW18GNJA1
- AMNW18GNJA2
- AMNW24GNJA2
- AMNW36GNJA2
- AMNW36GNKA1
ANNW models
- ANNW12GJLC0
- ANNW30GJLC0
- ANNW42GKLA0
- ANNW48GKLA0
- ANNW60GKLA0
LVN1 models
LVN2 models
LVN3 models
LVN4 models
LVN6 models
Specifications
After You Order
Order number and confirmation by email the moment you check out.
Available to order — lead time may apply. We email you the ship date once it's confirmed; contact us first if timing matters.
Tracking number lands in your inbox the moment it leaves the building.
Check the part number on the label against your order before installing. Wrong or damaged? Tell us — we'll sort it out.
Ask the Parts Desk
Not sure this fits? Need more than what's in stock? Send the model and serial from the unit's data plate — a real person reads it and confirms before you order.
Common Questions
What LG models does EBR86480002 fit?
LG lists EBR86480002 for: AMNW18GNJA1, AMNW18GNJA2, AMNW24GNJA2, AMNW36GNJA2, AMNW36GNKA1, ANNW12GJLC0, ANNW30GJLC0, ANNW42GKLA0, ANNW48GKLA0, ANNW60GKLA0, LVN120HCV, LVN180HV4, LVN181HV4, LVN241HV4, LVN300HCV, LVN360HV4, LVN361HV4, LVN420HV, LVN480HV, LVN600HV. Use the fit checker on this page with your model and serial to confirm against LG's service notices.
Is the stock number on this page real?
Right now neither LG nor our warehouse shows EBR86480002 on hand. You can still order it — lead time may apply; contact us to confirm a date, or check the interchangeable numbers listed above.
Is this a genuine LG part, or aftermarket?
Genuine LG OEM equipment sourced through LG's authorized parts program — not an aftermarket substitute.
How do I confirm this fits my unit?
Match part number EBR86480002 to your unit's parts diagram. If unsure, send us your model and serial number and we'll verify before you order.
What's the warranty on this part?
Warranty terms vary by manufacturer. Contact us with your order number for details specific to this part.
How fast does this ship?
EBR86480002 isn't on hand right now — it's available to order and lead time may apply. Contact us to confirm the ship date before you order.
